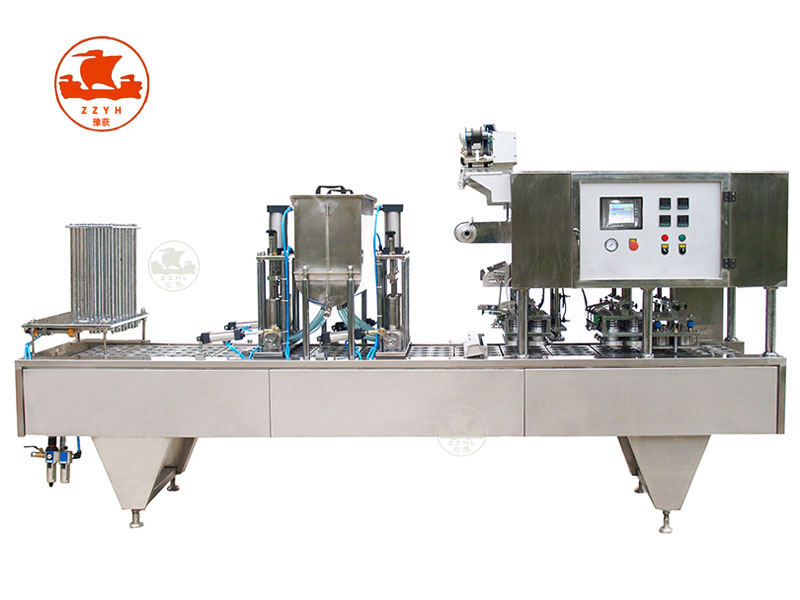

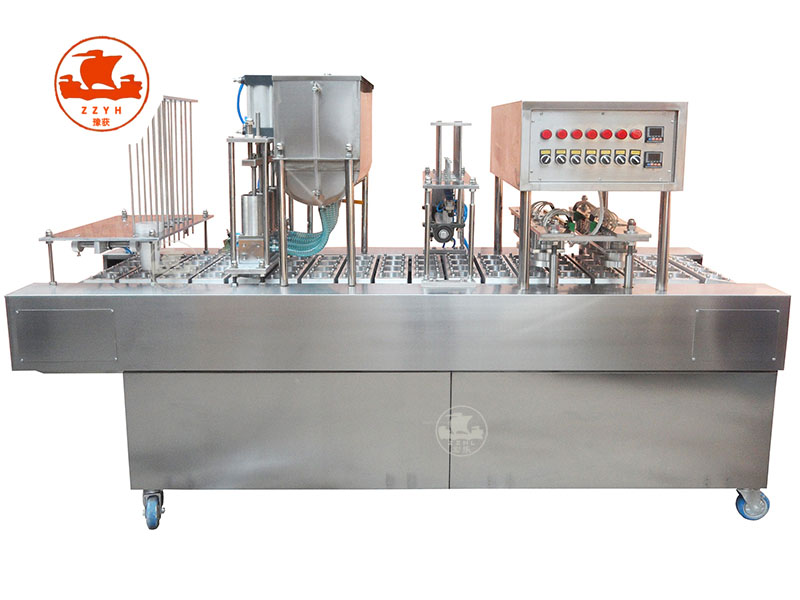

Automatic cup filling sealing machine

We're here to help: Easy ways to get the answers you need.

■ Overview

Pneumatic components (Asia off)
PLC (Omron)
Screen (Taiwan Wei Lun)
Contactor (Schneider)

Acid resistance Aluminum molds

Model:HLBG-4

Voltage：380V/50HZ

Power：5KW

Capacity：3750 cups/hour

Air consumption：0.6m³/s

Air pressure：0.5-0.8mpa

Size：3000*850*1600mm

Material:SUS304

Conveyor belt(white）

Including the feeding for powder(4 lines)

Suitable for cup specifications：

Height:99mm, Upper diameter:95mm， Bottom diameter:66mm

Height:99mm, Upper diameter:96mm， Bottom diameter:75mm

■ Specifications
