Heavy Hammer Crusher

Heavy Hammer Crusher

Model: PCZ1310
Rotor diameter × length (mm): 1310×1050
Feed opening lengh×width(mm): 890×1075

We're here to help: Easy ways to get the answers you need.

Overview
Specifications
Inquiry

■ Overview

Model	Rotor diameter × length (mm)	Feed opening lengh×width(mm)	Feeding size (mm)	Capacity (t/h)	Power(kw)	Dimension L×W×H (mm)
PCZ1310	1310×1050	890×1075	<500	150-180	160-4	2950×2250×2495
PCZ1512	1500×1160	1200×900	≤600	250-320	(160-4)×2	3260×2624×2750
PCZ1513	1500×1260	1290×900	≤600	250-400	(180-4)×2	3260×2624×2750
PCZ1615	1650×1452	1500×1200	≤650	420-800	(220-4)×2	3667×2937×3436
PCZ1815	1850×1520	1500×1280	≤650	500-800	(250-4)×2	3680×2915×3515
PCZ1818	1850×1800	1500×1280	≤700	550-800	(250-4)×2	3680×3350×3515
PCZ1620	1660×1900	2000×1200	≤800	800-1200	(400-6)×2	3667×3200×3436
PCZ1820	1800×1964	2000×1200	≤800	800-1500	(450-6)×2	3700×3270×3515
PCZ2122	2130×2280	2240×1510	≤1000	1800-2200	1000-6	4990×4385×4360
PCZ2225	2200×2485	2530×1560	≤1200	2000-3000	1250-6	5060×4565×4670

■ Specifications

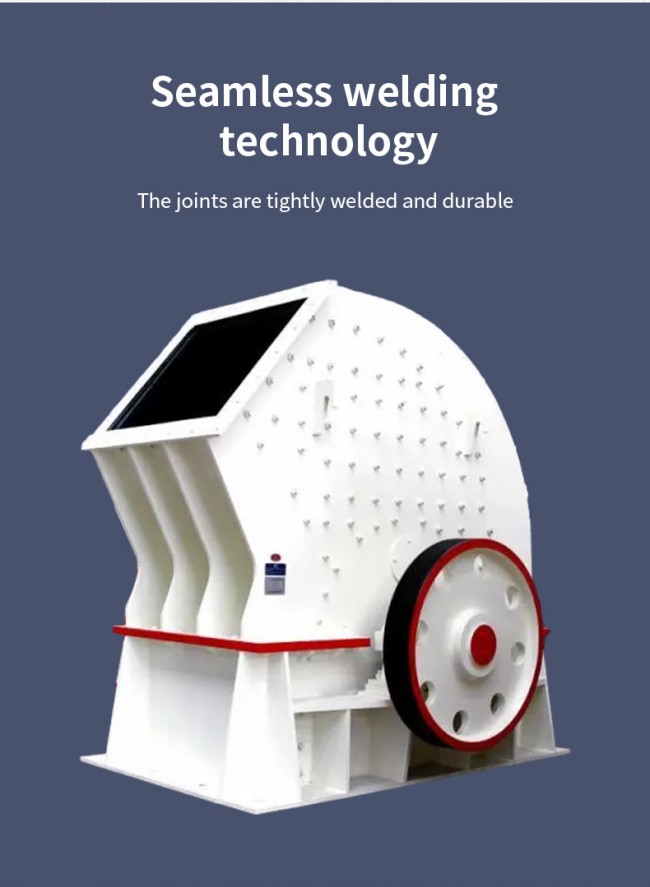

The PCZ series heavy-duty hammer crusher is a new type

of crusher developed based on the PC series crusher, based

on user feedback information and the development trends

of the crushing industry, and combined with our company's

experimental data. Compared with other hammer crushers,

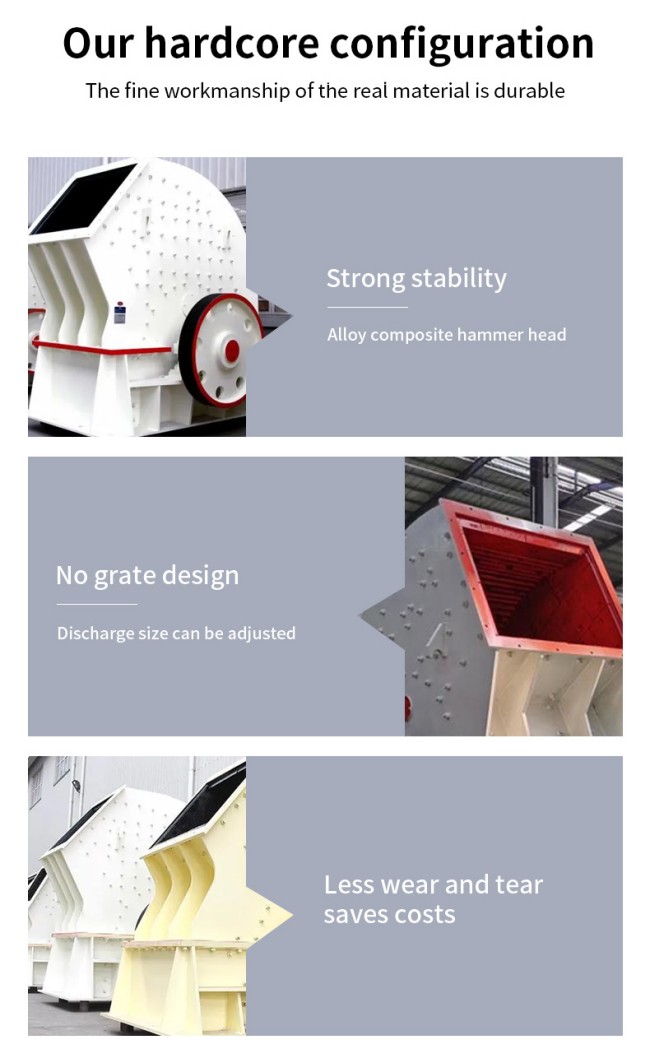

the alloy composite hammer head has significant

characteristics such as high hammer head wear resistance,

large rotational inertia, and high rotor kinetic energy. It

has large feed particle size, high crushing ratio,Features include low maintenance costs. With an output of 50 tons to 5,000 tons per hour, this series of crushers is becoming the first choice equipment in the crushing industry.
