Circular Vibrating Screen

Circular Vibrating Screen

Model: 2YK1237
Screen mesh (mm): 3700×1200
Layers: 2

We're here to help: Easy ways to get the answers you need.

Overview
Specifications
Inquiry

■ Overview

Model	Screen mesh (mm)	Layers	Sieve pore size(mm)	Max .feed Size(mm)	Production capacity(th)	Power (kw)	Vibrating frequency (r/min)	Double amplitude (mm)
2YK1237	3700×1200	2	3-50	200	10-120	11	870	5~9
3YK1237	3700×1200	3	3-50	200	10-120	11	870	5~-9
2YK1548	4800×1500	2	3-100	400	30-275	15	870	5~9
3YK1548	4800×1500	3	3-100	400	30-275	15	870	5-9
2YK1848	4800×1800	2	3-100	400	56-330	18.5	870	5~9
3YK1848	4800×1800	3	3-100	400	56-330	18.5	870	5~9
2YK1860	6000×1800	2	3-100	400	65-586	22	870	5~9
3YK1860	6000×1800	3	3-100	400	65-586	22-30	870	5~9
2YK2160	6000×2100	2	3-100	400	81-720	30	730	5~9
3YK2160	6000×2100	3	3-100	400	81-720	30-37	730	5-9
2YK2460	6000×2400	2	3-150	400	100-810	37	770	5~9
3YK2460	6000×2400	3	3-150	400	100-810	37	770	5~9
2YK2660	6000×2600	2	3-150	400	200-810	45	770	5-9
3YK2660	6000×2600	3	3-150	400	200-810	45	770	5~9
2YK3070	7000×3000	2	3-150	400	300-810	55	750	5-9
3YK3070	7000×3000	3	3-150	400	300-810	55	750	5~9

■ Specifications

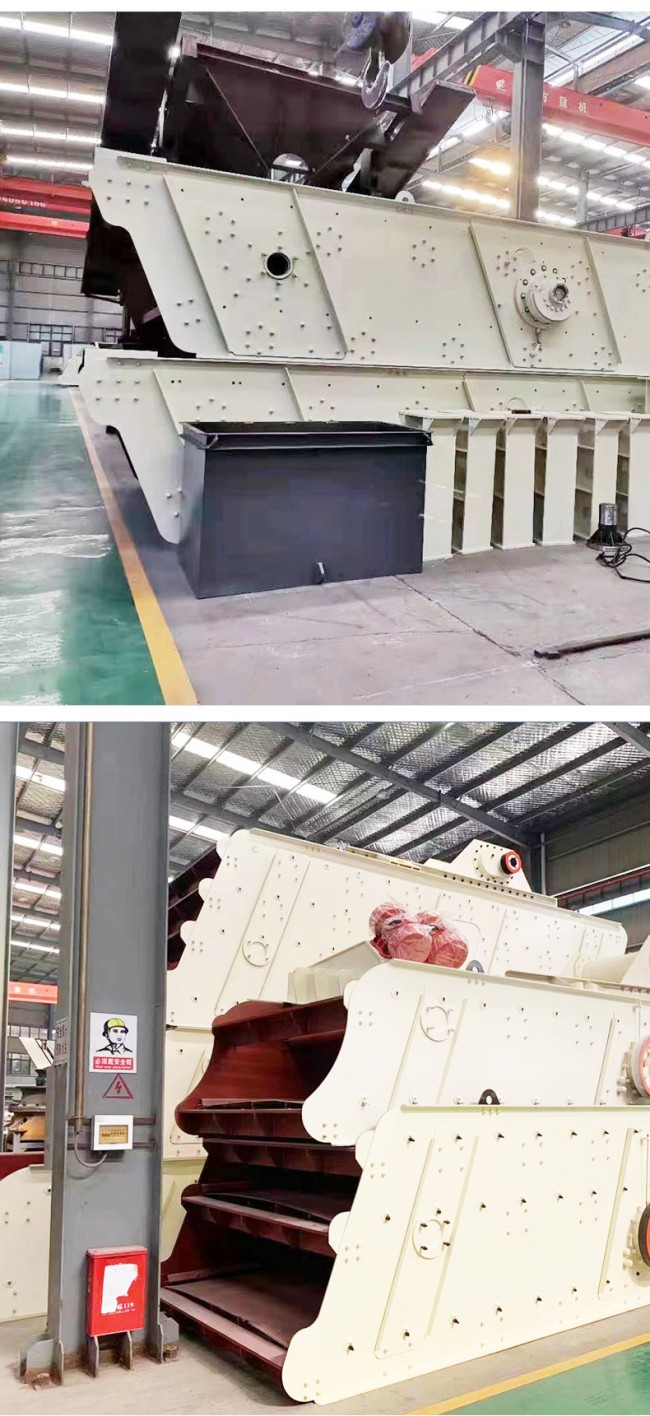

The circular vibrating screen moves in a circular motion and is a new type of multi-layer, high-efficiency vibrating screen. The machine uses a simplified eccentric shaft vibrator and an eccentric block to adjust the amplitude. The material screening line is long and the screening specifications are various. It has the characteristics of reliable structure, strong excitation force, high screening efficiency, low vibration noise, firmness and durability, easy maintenance, and safe use. It is widely used in product classification in mining, building materials, transportation, energy, chemical industry and other industries.
